In simple words, at home, generally metal scrubber can be seen for dish cleaning. And it is also like a sponge that can easily squeeze and get back to its natural shape.

Compressed knitted is just like it. It’s like both are working together. But it is made for big machines in factories, cars, planes, and even chemical plants.

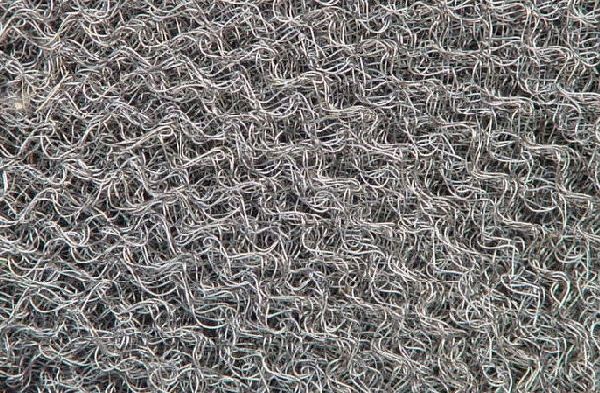

Compressed knitted mesh is made with thin metal wires or plastic wires, just like knitting a sweater. But instead of wool or yarn, machines use strong wires such as stainless steel or copper.

After that, the flexible wire tube is pressed very hard in a machine called a die press. And this press squeezes the knitted wire and turns it into a solid, compact shape like a ring, disc, block, or cylinder.

In simple words, it starts like knitting a wire fabric, and then it gets pressed tightly. After pressing, it becomes stronger, softer and bouncier with lots of little gaps inside. And then this pathway helps the material to work like a sponge.

It looks like strong, soft and round metal. It feels solid metal, and it has many tiny twisted pathways that help to trap the mist, dust, and particles.

How Is Compressed Knitted Mesh Made?

1. Knitting: It is a special machine that knits metal wires together. It is similar to how people knit socks or sweaters, but here the “thread” is metal wire.
2. Making a Tube: The knitted mesh comes out like a long, stretchy tube — very flexible and soft.
3. Cutting: This tube is cut into pieces depending on what size or type is needed.
4. Compressing: Now the flexible piece is placed in a strong press. The press pushes it very hard, turning it into a solid and stable shape. This pressing step is what gives the material its final strength.
5. Forming Special Shapes: Different industries need different shapes, so compressed knitted mesh can be made into: Rings, Discs, Cylinders, Blocks, and Pads.

Why Compressed Knitted Mesh Is So Strong?

This material is famous for being very tough, and here’s why:

• Materials: It is made from stainless steel, copper.
• Tiny Springs: in every knitted loop works like a mini spring. It also helps the material to bend without breaking.
• Handles Heat: It is made of metal and which does not melt or get damaged easily even at high temperatures.
• For a long time, it does not rust quickly and can survive in harsh factory conditions.
• It can absorb: It reduces shaking and noise inside machines, keeping them safe.

How Does Compressed Knitted Mesh Work?

• Compressed knitted mesh works like a smart metal sponge with many tiny pathways.
• These pathways help trap very small dust and dirt particles as air or liquid passes through.
• It can easily catch mist droplets and stop them from escaping into the environment.
• The mesh also helps separate gas and liquid in different industrial processes.
• Its strong metal loops absorb noise and vibration, keeping machines steady and quiet.
• Even when squeezed under pressure, the mesh springs back into shape.
• All this happens because of its twisted pathways and strong, flexible loops.

Where Is Compressed Knitted Mesh Used?

It has many uses:

1. Filter: It is one of the most important uses in factories, engines, and chemical plants that use compressed knitted mesh to filter the gas, air, water, and oil. And especially in mist eliminators, it catches tiny droplets from the gas so that only clean gas passes through. It keeps the machine clean machine clean and reduces harmful chemicals.
2. Absorbers: Cars, trains, and even aeroplanes use compressed knitted mesh to reduce vibration. They absorb movement and noise. It makes it safe, quiet, and smooth.
3. Seals and Gaskets: In places with very hot temperatures, normal rubber or plastic seals cannot survive. So industries use compressed knitted mesh as high-temperature seals. It fits well, springs back, and does not melt, making it perfect for such jobs.
4. Electronics: Electromagnetic Interference can disturb electronic devices. Compressed knitted mesh is used to block it. This is very useful in computers, communication equipment panels, and medical machines
5. Chemical and Oil Industries: In big towers and columns inside chemical factories, compressed knitted mesh helps separate liquid and gas. It keeps the process clean and efficient.

Why Does Industrial Like to Use This Compressed Knitted  Mesh?

• It is strong and it can be used for lasts long time.
• It works in high heat, and it can also be reused.
• It can be shaped easily.
• It can handle pressure and also handle high heat.
• It keeps machines safe, and it also improves performance.

Conclusion

Compressed knitted mesh may sound like a complicated engineering material, but at its core, it is simple and smart. Varun Engineering are here to give the best quality of compressed knitted mesh. That is not too strong and comes in good quality.

In Varun Engineering, you can also find pall rings, ceramic pall rings, and we also have lots of new products that make your work easy and safe.

That’s why it is not good for health, and also it can damage the machine, and if this mist comes into contact with a worker, they might get sick. And the environment is also getting polluted.

To protect from this problem, industries use the Mist Eliminators device. When this device is made with titanium, it works much better. The titanium equipment becomes stronger, safer, and also reliable.

What is titanium Equipment?

 Titanium equipment is a kind of device that is used in industries to remove tiny liquid droplets from the gas or air. It removes that mist before it comes into contact with the environment.

And the droplets that come from chemical reactions, cooling towers, scrubbers, and acid plants.

If these droplets come into contact with the environment, then they can cause a huge issue. And contact with people can cause health problems.

These mist eliminators are put mostly inside the tank or tower, where the gas passes through. This device traps the droplets, collects them, and then lets the clean air move ahead.

When a mist eliminator is made with titanium, it makes the device more strong, and also works well. Titanium does not rust when it comes into contact with air. This is the reason it can also be used for a long time. Titanium can easily handle harsh chemicals, high temperatures without facing any damage.

Why is titanium Equipment used?

Titanium is one of the strongest and trustworthy metals. It has many reasons to use it:

• Rustless: This metal does not rust easily. Many industries use strong chemicals that can easily break or rust the device. Normal metal gets rust and gets weak easily. But titanium is strong and does not get weak easily.
• It stays strong even it exposed to sulfuric acid, seawater, etc.
• Lightweight: It is lightweight and it is also strong. That makes it easier to install and maintain.
• Long Life: It is also stronger than steel. It does not rust and is also lightweight. That makes this device last longer. In this way, it helps to save money. And it is also stronger than steel.
• High Heat: This metal can handle high temperatures, and it does not get damaged. It can easily handle without losing strength. This is useful for plants that use hot gases or steam.
• Safe and clean: This is really safe for industries because it does not react with the touch of any chemical. That makes it safe to use it.

How does titanium Equipment work?

1. Gas with Mist Enters the Unit: Gas or air that has tiny water or chemical droplets enters the mist eliminator. These tiny water drops are very small and cannot be seen easily.
2. Titanium Mesh or Vanes Capture the Droplets: Inside the unit, there are strong titanium parts like mesh pads, vane packs, and wire pads. These act like filters. The mist gets stuck to the titanium surface when the gas of the mist is passed through it.
3. Tiny Droplets Combine: After sticking, the small droplets slowly join to make bigger drops. It is called coalescing.
4. Bigger Drops Fall: When the drops become bigger and heavier, they fall down because of gravity. This liquid can then be reused or safely removed.
5. Clean Gas: After the mist is removed, the clean gas moves out from the top or side of the mist eliminator. It makes the air safe and clean.

Type of Titanium equipment

There are three types of equipment:

1. Titanium equipment: It looks like layers of metal mesh. And it is best for small to medium-sized droplets. It is common in chemical plants and water treatment.
2. Titanium Vane-Type equipment: It has curved plates that change the direction of gas flow, and it is also good for large droplets and high gas flow. It is used in scrubbers and evaporators.
3. Fiber-Type Titanium equipment: It is made with fine titanium fibers. It helps to remove extremely small droplets.

Industries That Use Titanium Equipment

Chemical Plants: To remove acid mist and protect workers and equipment.

• Power Plants: It helps to clean steam and gas before releasing them into the environment.
• Oil and Gas: It helps to remove oil droplets from gases.
• Desalination Plants: They help to prevent salt and minerals from contaminating systems.
• Marine and Offshore Applications: It is also good for seawater environments.
• Pharmaceutical and Food Industries: For clean and safe air during production.

Conclusion

A Titanium equipment is not just a part of your plant; it is a protection system for your machines and environment. It helps to protect the machine from damage.

At Varun Engineering, we always make sure that the machine removes all the mist from the gas or air. It also needs less maintenance and lasts a long time. This helps to keep your plant safe and clean.

It is made of metal or plastic. It helps to enhance the work, provide safety. It has also been used for a long time, and it helps to save power. Metal pall rings suppliers are strong and also made of plastic or ceramic. These are budget-friendly, and they help in separating, filtering, and also scrubbing the liquid and gases. Which makes it work fast.

It has small rings that help to clean the liquids and gases. It is very strong and it has lots of spaces to open, which can easily make the thread better than normal rings. It also helps in saving energy and is low in cost.

It also allowed the fluids to flow freely through the packing and increased the surface area for contact. Pall rings packing has a net type of structure, but instead of catching things, it helps liquids and gases mix properly.

What are Ceramic Pall Rings?

Ceramic Pall Rings has two layers of windows in the ceramic cylinder wall, with five tongues designed in a way to improve gas and liquid distribution. These rings also provide isolation in traditional packaging.

What Are the Benefits of Using Pall Rings?

1. It helps to remove dust, smoke, or harmful chemicals from gases before they go into the air.
2. It is the process of properly mixing gases and liquids to help clean the water.
3. The purpose of the oil and chemical industries is to separate various components of fuel, chemicals, or oil so that factories can obtain pure products.
4. It helps to protect the air and water and reduce pollution.
5. Stainless steel pall rings are made from metal, plastic, or ceramic. Metal pall rings and copper pall rings also give long life and strength. It has top-quality material.
6. It has Precision designs and it is perfectly shaped for maximum efficiency and smooth flow.
7. Available in different sizes to fit all types of columns and towers.
8. Regular results in the chemical, oil, water treatment, and environmental industries.
9. Durable products reduce maintenance and operational costs.

Key Features of Pall Rings

1. Pall Rings have holes and cuts that make gases and liquids flow easily.
2. It also protects the heat and chemicals.
3. It protects from heat and chemicals.
4. Their open shape allows smooth flow without blocking the column.
5. Available in many options to fit different industries and uses.
6. They last long and reduce maintenance costs.

Sizes of pall rings

1. Small sizes: (like 10 mm, 16 mm) are used in laboratories or small equipment.
2. Medium sizes:  (25 mm, 38 mm) are common in chemical and water treatment plants.
3. Large sizes :  (50 mm, 76 mm) are used in big industrial towers where high gas and liquid flow is needed.

Why are pall rings needed?

It has a unique design of holes and cuts that allows for greater contact between gas and liquid. It helps to clean the dirty gases before they go into the air. It allows the gases and liquids to mix easily. In this way, it makes the air fresher and the water cleaner. And also helps to separate different liquids in oil and chemical factories.

And it also needs water cleaning. It helps to clean dirty water. And it can be reused or safely released into rivers. They remove the chemical from the air and also remove the harmful gases before they go into the air. This helps reduce air pollution and keeps people and animals healthy.

How to take care of Pall Rings?

1. Dirt or chemicals can build up over time. So it needs to be cleaned the rings regularly to keep the efficient.
2. During shutdowns, always check the condition of the rings.
3. Check the flow of the air or liquid because sometimes it gets blocked by waste.
4. When removing or reinstalling, handle the rings gently to prevent breakage.

Conclusion

The design of the pall rings is made to save energy. And it can also be used for a long time, which simply means that less waste and lower costs. They can be reused, and it is recycled. The longer it is, the more it helps the environment.

Pall rings manufacturer India, at Varun Engineering, we offer premium Pall Rings that meet international standards and suit a variety of industrial needs. We also make sure to give the best quality.

Our pall rings suppliers, we also deliver value. It is trusted by top industries for its strength, efficiency, and long-lasting performance. We are ready to give you strong, high-quality Pall Rings at great prices.

We are the best pall rings company that serves the best quality of pall rings. In 1997, Varun Engineering was established. And it also got certified in 2015. It has an experienced team, and it gets lots of trust.

FAQ

1. What are Raschig pall rings?

Rings are small, hollow rings that are used in factories to facilitate the effective flow of gases and liquids. It helps separate liquids and gases in industries. And it protects to improve efficiency in water purification, chemical processing, and oil refining.

2. How are pall good for the environment?

It keeps the environment clean with the help of removing gases and liquids. It allows the gases and liquids to mix easily.

3. What does “pall” mean on a ring?

Its simple meaning is Palladium. But mostly pall are used. It explains that 95% of the palladium content is in the pieces.

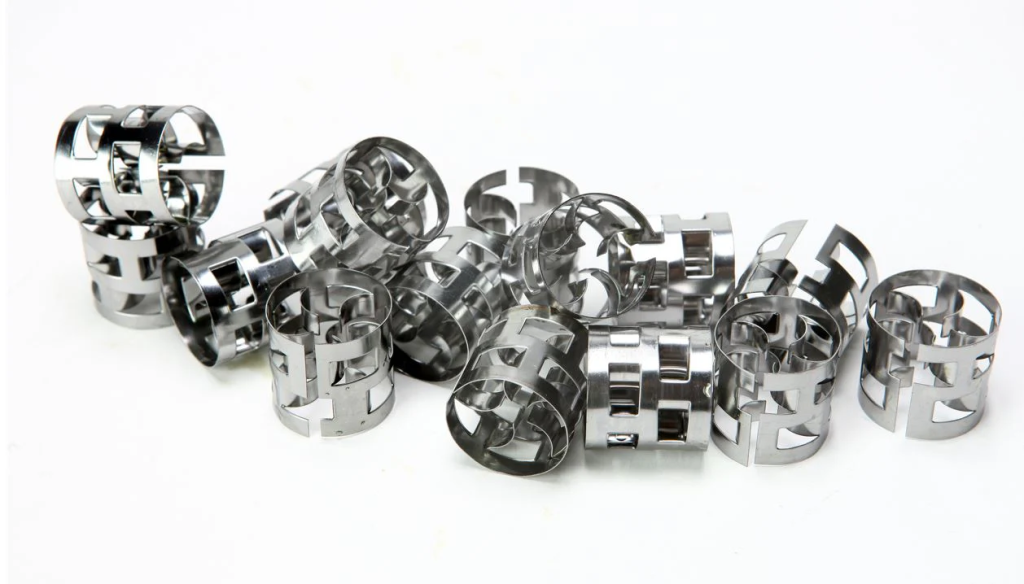

Getting to Know Pall Rings

Pall rings show up as random fillers in towers and columns. Think short tubes, crafted from plastics, metals, or ceramics, sporting clever cuts and insides. Unlike plain old fillers, these have slots in sides plus inner bits like flaps. Such tweaks crank up the area where stuff touches and smooth out flows for gases and liquids.

Born back in the forties to fix flaws in earlier rings, Pall rings tackle drops in pressure and spotty spreads. That setup suits tasks needing solid swaps of mass, think boiling off, soaking up, or wiping clean. Varun Engineering turns out these with care for all sorts of work floors.

The Big Deal with Gas-Liquid Touches

Jumping into Pall rings calls for grasping why gas-liquid meets count so much. Tons of factory steps hinge on gases and liquids mingling right. Take these spots:

• Boiling apart: Splitting blends by heat points.
• Soaking in: Pulling gases out by melting into fluids.
• Wiping off: Clearing bad bits from smoke in green ops.
• Water fixing: Yanking gases or junk from H2O via air blasts or pulls.

Every time, aim hits max mingles between gas and liquid for swaps of stuff or warmth. Bad mingles waste power, cut outputs, spike bills. Fillers like Pall rings fix that, setting up prime spots for those swaps.

The Way Pall Rings Operate

Dump Pall rings loose in a column, forming a layer gases and liquids pass through. Trick lies in that build. Tube shape with cuts and inner flaps pulls off three main feats:

1. Boosts touch space: Slots and insides offer extra room for gas-liquid dances, upping swap rates.
2. Cuts flow fights: Open look lets stuff slide easy, trimming power use over old styles.
3. Evens spreads: Build stops liquids from bunching paths, keeping touches steady all over.

Liquids trickle down as gases climb, hitting on ring faces. Amped space and flow tricks mean sharper swaps, be it gas soaking or blend splits.

Shift from Raschig Rings

Grasping Pall rings’ edge means eyeing their old kin: Raschig rings. Popped up in 1914 thanks to Friedrich Raschig, those were basic empty tubes same tall as wide. Groundbreaking then, but they dragged with high flow blocks, needing extra push. Plus, liquids spread unevenly, which drops output.

Pall rings hit in forties, fixing those. Adding slots and tabs hiked space by twenty percent, slashed flow blocks big time. Made them handier, taking bigger flows with less juice. Setup also curbs path bunching, where liquids stick to lanes, ignoring chunks of filler.

Standout Traits of Pall Rings

What sets Pall rings apart? Check these core bits:

• Wide open build: Slots and flaps make basket vibes, easing flow drags.
• Big touch zone: Extra face means more mingle chances.
• Stuff choices: Plastic like polyprop, metal like steel, ceramic for needs.
• Tough build: Handles rough chems to hot spots.
• Light flow block: Less drag cuts power tabs.

Such traits push Pall rings as picks for ops tweaking. Varun Engineering dishes them in mixes and scales fitting exact jobs, promising strength and kick.

Where Pall Rings Shine

Pall rings pop in loads of fields, each grabbing that contact boost. Spot these uses:

1. Boiling Splits

In split towers, Pall rings aid pulling apart liquid mixes by boil diffs. Rings give vast face for vapor-fluid meets, sharpening splits. Key in petro spots, cracking oil into gas, diesel, more.

2. Gas Soaks

Soak towers lean on Pall rings to yank gases by dissolving in liquids. Like in air clean, rings scrub nasties such as SO2 or CO2 from plant puffs.

3. Wipe Ops

In fume wipers, Pall rings yank junk from smokes. Vast face maxes meets between fumes and wipe fluids, boosting clean. Crucial for rules in power makes.

4. Water Fixes

Pall rings help water ops like air adds or gas yanks. Pull dissolved gases like CO2 or flighty bits from water, upping quality for works or towns.

5. Chem Mixes

In react towers, Pall rings push gas-liquid reacts with big meet zones. Common in chem builds, where good mixes speed reacts and hike yields.

6. Yank Outs

Yank steps use Pall rings to pull bad gases from liquids. Say in water clean, rings strip ammonia or VOCs from waste flows.

Perks of Pall Rings

Picking Pall rings over others? Eye these wins:

• Sharper swaps: Amped space and even spreads crank swap speeds, making ops slicker.
• Trimmed power bills: Open build drops flow blocks, needing less push for fluids.
• All-round use: Varied stuffs handle temps, pushes, chem vibes.
• Wallet smart: Upfront might top some, but tough and sharp cut long hauls.
• Less gunk: Open setup slows clogs, keeping steady runs.

These ups tag Pall rings as faves for ops tuning while watching pennies.

Pall Rings vs. Other Fillers

Appreciating Pall rings means stacking against common fillers:

Raschig Rings

Earlier noted, Raschig are plain tube walls. Less space, more block than Pall, making them outdated for most new gigs.

IMTP Packs

IMTP saddle shapes, offering bigger space and kick than Pall but pricier. Pall rings hold for spots balancing cost and do.

Tri Packs

Tri Packs ball shapes with twisty insides. Ace at low gunk and light blocks, like wipers. Yet Pall rings win in boils and soaks for handiness and cheap.

Each filler fits somewhere, but Pall rings hit sweet spots on kick, price, tough.

Stuffs in Pall Rings

Pall rings come in varied stuffs, each for certain scenes:

• Plastic: PP rings light, no rust, fit chem ops or water. Cheap but cap at 100C.
• Metal: Steel rings tough, take heat and push. Ideal harsh like petro cracks.
• Ceramic: Ceramic rings fight rust and heat, good acids or hots. But heavy, break easy over plastic or metal.

Picking stuff ties to op vibes like heat, push, fluid chems. Varun Engineering stocks all, matching any call.

How Pall Rings Amp Contact Kick

Core here: how Pall rings spike gas-liquid touch sharpness? Boils to three keys:

1. Maxed Touch Space

Slots and inner flaps in Pall rings crank space over old fillers. More room for mingles, better swaps. Like in split towers, extra face lets more vapor cool and liquid heat, sharpening pulls.

2. Fine-Tuned Spreads

Bunching flows plague packed spots. Drops kick by ignoring filler chunks. Pall rings fight with open builds, pushing even liquid lays. Inner flaps steer fluids over rings, steadying gas meets.

3. Slashed Flow Blocks

Big blocks hike power tabs for fluid pushes. Pall rings’ open vibes trim drags, easing gas-liquid slides. Cuts juice for soaks or boils, making runs cheaper.

These bits team to make Pall rings ace at touch boosts. Ops flow smooth, yields up, costs down.

Real Scene Hits from Pall Rings

Pall rings’ wins show in daily ops. Check samples:

• Petro World: Refineries use Pall rings for split towers, better cracking oil to valuables like gas and kero. Ups make, trims power.
• Green Guards: Fume wipers with Pall rings yank SO2 from plant smokes, hitting rule marks.
• Water Cleans: Rings yank nasties like ammonia from wastes, boosting reuse or dump safety.
• Chem Makes: React towers with rings sharpen gas-liquid mixes, upping yields, cutting junk.

These cases prove Pall rings pack real punches across works, tagging them as go-tos for tweaks.

Picking Right Pall Rings

Nailing Pall rings for jobs means eyeing keys:

• Stuff: Tie to op vibes. Rust spots? Plastic or ceramic. Hots? Metal.
• Scale: Sizes from 16mm to 76mm. Small crank space but might block more. Big ease flows but less face.
• Op Needs: Weigh swap kick, block, throughput. High kick? Small rings or fancier like IMTP.
• Run Vibes: Heat, push, chem fits ensure long runs.

Tapping pros like Varun Engineering spots best rings, promising top do and saves.

Upkeep and Lasting

Pall rings’ tough shines. Plastic, metal, ceramic built for roughs, from eats to hots. Open build cuts gunk, less fix than others.

Still, check and clean routine. Time brings junk or scales, dropping kick. Steady upkeep keeps rings sharp, stretching life, holding costs low.

Green and Wallet Wins

Now, green counts big. Pall rings help by sharpening ops, trimming power use. Light blocks mean less pump and fan juice, shrinking carbon marks.

Plus, long-term cheap. Might cost more start than basics like Raschig, but tough and sharp save on power, fix, swaps. For balancing do and bucks, Pall rings invest smart.

Pall Rings Ahead

As works shift, Pall rings evolve. Hunts refine builds and stuffs for bigger kicks. Say, new makes could amp space or fight gunk better. Stuff leaps might bring picks for wild hots or eats.

Pall rings tag in new gigs like CO2 grabs, where touch kick keys yanking from puffs. As works chase green and sharp, Pall rings stay core in chem flows.

Picking Varun Engineering

For Pall rings, quality counts. Varun Engineering leads, dishing top rings fit for work needs. Eye on tough, sharp, client wins, every bit hits marks. Be it boils, wipes, water, their rings bring steady, aiding ops tweaks.

Wrapping Up

Pall rings look tiny, but pack huge on gas-liquid touch kicks. Clever build—slots, flaps, open vibes—maxes space, evens spreads, trims blocks. Fits wide gigs, from boils and soaks to wipes and water. Boosting swaps, trimming power, offering tough, Pall rings push works sharper and greener.

For ops boosting, Pall rings prove winners. Right stuff and scale flip ops, better outs with less fuss. As works innovate, Pall rings hold as key tools for sharp and green chases.

Understanding Packed Columns and Their Importance

Think of a packed column as a giant mixing chamber. It’s a tall, cylindrical vessel filled with tower packings that create a surface for liquids and gases to interact. This interaction drives separation or purification in processes like:

• Distillation: Separating liquids by boiling points, like turning crude oil into gasoline.
• Absorption: Capturing gases in liquids, often for emission control.
• Extraction: Isolating compounds from mixtures, vital in pharmaceuticals.

The tower packings, such as Raschig ring column packing, are the heart of the column. They control how well fluids mix, how much energy the process takes, and how long the system runs without issues. Old designs worked years ago, but today’s need for efficiency and sustainability demands smarter random packings and structured solutions. Better packing cuts energy bills, boosts output, and keeps operations smooth.

Why Packing Matters

Tower packings create the surface where liquids and gases meet. The goal is to maximize contact while keeping flow smooth. Good random packings, like Raschig ring column packing, do several key things:

• Increase Contact Area: More surface means better mass transfer, essential for separating substances.
• Guide Flow: They ensure even liquid and gas spread, avoiding channeling, where fluids skip parts of the packing and lower efficiency.
• Cut Energy Use: Less resistance (pressure drop) means less power to move fluids through the column.
• Reduce Clogs: Smart designs prevent solid buildup, keeping the column running longer.

Modern tower packings, especially innovative random packings, take these basics and enhance them with new shapes and materials.

Random vs. Structured Packing: What’s the Difference?

Packing comes in two main types: random and structured. Each has strengths, and choosing the right one depends on the task.

Random Packing

Random packings, like Raschig ring column packing, are small shapes—rings, saddles, or spheres—poured into the column. They’re simple, affordable, and versatile. Common types include:

• Raschig Rings: Basic hollow cylinders, one of the earliest random packings.
• Pall Rings: Improved with holes and internal features for better flow.
• Saddles: Curved shapes that boost surface area and reduce clumping.

Random packings shine in smaller columns or high-liquid-flow processes. They’re easy to install and cost-effective. But if not packed carefully, they can lead to uneven flow. Newer random packings from Varun Engineering use optimized shapes to improve performance without raising costs.

Structured Packing

Structured packing takes a more organized approach, using arranged sheets or grids, often corrugated, to guide fluid flow precisely. It’s ideal for high-stakes jobs like large-scale chemical plants or vacuum distillation. Benefits include:

• Lower Resistance: Fluids move with less pushback, saving energy.
• Higher Efficiency: The orderly design maximizes liquid-gas contact.
• Custom Fit: It can be tailored for specific needs, like handling harsh chemicals or heat.

Structured packings, unlike random packings, come in materials like metal, plastic, or ceramic, depending on the process. For instance, gauze packings suit low liquid loads, while metal sheets handle high-pressure systems.

Why Focus on Column Performance?

Optimizing a column’s performance is about making it work better, not just keeping it running. Here’s why it matters:

• Saves Money: Efficient columns with advanced tower packings use less energy and need less upkeep.
• Boosts Output: Better random packings mean more product processed faster.
• Helps the Planet: Lower energy use and less waste align with green goals.
• Ensures Reliability: Well-designed columns handle tough conditions without failing.

With fierce competition and stricter regulations, outdated random packings won’t cut it. Innovative tower packings keep businesses competitive.

What’s New in Packing Design?

Packing has evolved far beyond basic Raschig ring column packing. Engineers now use cutting-edge tools and ideas to create tower packings that deliver top performance. Here’s what’s driving the change:

1. Smarter Materials

Modern tower packings use materials chosen for strength and performance:

• Metals: Stainless steel or titanium for durability and corrosion resistance.
• Plastics: Lightweight options like polypropylene for less demanding setups.
• Ceramics: Built for high heat or acidic conditions.
• Carbon-Based Materials: Ideal for corrosive chemicals or extreme temperatures.

These materials improve how fluids interact with random packings, like better liquid spread for enhanced contact.

2. 3D Printing for Custom Designs

3D printing is changing the game by enabling complex tower packing shapes. Intricate lattice structures or custom rings maximize surface area while keeping flow smooth. These designs can boost efficiency by 15-20% in some cases, a big win for industries.

3. Computer Modeling

Computational fluid dynamics (CFD) lets engineers simulate fluid movement through random packings or structured designs. This allows testing of tower packings on a computer, tweaking shapes to cut resistance or prevent backups. It’s a game-changer in fields like pharmaceuticals, where precision matters.

4. Hybrid Solutions

Some tower packings combine random and structured benefits. Hybrid gauze packings, for example, offer low resistance with the flexibility of random packings. They’re great for processes like CO2 capture in environmental systems.

5. Fighting Buildup

Clogging, or fouling, is a challenge in columns with sticky or particle-heavy fluids. New tower packing designs use smooth surfaces or wider channels to reduce buildup. For example, structured packings with specific angles minimize spots where solids stick, extending column life.

Key Steps to Optimize Column Performance

Getting a column to perform at its best requires careful planning. Here’s what counts:

1. Picking the Right Packing

The tower packing must fit the job. For distillation, structured packing might excel due to low resistance. For heavy liquid flows, random packings like Raschig ring column packing are often better. Key factors include:

• Fluid Traits: Thickness or stickiness affects how fluids work with tower packings.
• Operating Conditions: High heat or pressure may demand metal or ceramic over plastic.
• Goals: For high-purity output, structured packing often outperforms random packings.

2. Keeping Resistance Low

Pressure drop is the drag fluids face moving through tower packings. Too much drag wastes energy; too little might mean poor mixing. Modern random packings, like corrugated sheets with gentle angles, balance this well. For example, 30°-angle packings often save more energy than steeper ones.

3. Spreading Fluids Evenly

Uneven flow, or maldistribution, hurts efficiency. Liquid distributors at the column’s top ensure fluids spread evenly across tower packings. Advanced distributors prevent shortcuts and dry patches, improving performance by up to 15%.

4. Sizing the Column Right

A column that’s too small can flood, while one too big wastes resources. Metrics like Height Equivalent to a Theoretical Plate (HETP) measure separation efficiency. Modern tools make these calculations precise, ensuring the column fits the job.

5. Staying on Top of Maintenance

Even the best tower packings need regular checks. Monitoring for clogs, pressure spikes, or packing settling catches issues early. Automated systems, like pressure sensors, help adjust conditions before problems grow.

Where Innovative Packing Shines

New tower packing designs are making a difference across industries. Here’s how:

1. Oil and Gas Refining

In refineries, structured packings cut energy use by reducing resistance. With energy often half the operating budget, these tower packings save millions. Some plants see throughput rise by 10-20% with high-performance random packings.

2. Cleaning Up Emissions

Absorption columns use tower packings to trap pollutants like CO2 or sulfur dioxide. Advanced random packings improve capture rates while using less energy, helping meet environmental rules affordably.

3. Drug Manufacturing

Precision is key in pharmaceuticals. Structured tower packings ensure consistent purity in processes like solvent extraction, reducing waste and ensuring safe drugs.

4. Biofuel Production

Separating ethanol from water is energy-heavy. Optimized random packings cut energy use by ensuring even flow, making biofuels more cost-competitive.

Tackling Common Challenges

Innovative tower packings bring big benefits but come with hurdles. Here’s how to handle them:

1. Upfront Costs

Structured packings cost more than random packings like Raschig ring column packing due to complex designs. But energy and maintenance savings often make them worthwhile. A cost-benefit analysis shows the long-term gain.

2. Clogging Issues

Sticky or particle-heavy fluids can clog tower packings. Designs with smooth surfaces or wider channels reduce this risk. Regular cleaning keeps things flowing.

3. Tricky Installation

Structured packings need careful setup to avoid gaps. Training workers and using automated systems ensure a tight, even bed of tower packings.

4. Scaling Up

A design that works in a lab might struggle at full scale. Pilot testing and simulations help ensure tower packings perform in real-world conditions.

What’s Next for Packing Design?

The future of tower packings is full of potential:

• Eco-Friendly Materials: Biodegradable plastics or recycled metals cut environmental impact without losing performance.
• Smart Monitoring: Sensors and AI could track column performance, adjusting flows or flagging issues instantly.
• Algorithm-Driven Designs: Computer-generated tower packing shapes could unlock new efficiency levels.
• 3D Printing Advances: Custom random packings will become more precise and affordable.

These trends will make columns more efficient, sustainable, and adaptable.

Tips for Better Column Performance

For businesses aiming to improve packed columns, here are practical steps:

1. Know the Process: Understand needs like output purity or flow rates to pick the right tower packings.
2. Invest Smart: High-quality random packings may cost more but pay off in savings.
3. Use Simulations: Tools like CFD spot issues before the column is built.
4. Train the Team: Proper installation and maintenance are vital for success.
5. Keep Monitoring: Regular checks for pressure changes or clogs prevent bigger issues.

Why Varun Engineering Stands Out

Varun Engineering excels in crafting tower packing solutions that deliver results. From high-efficiency random packings to custom structured designs, the focus is on performance, durability, and sustainability. Using advanced tools and materials, the company helps businesses optimize columns while keeping costs and environmental impact low.

Wrapping Up

Packed columns are the backbone of many industries, and their performance hinges on tower packings like Raschig ring column packing or advanced random packings. With innovative designs—new materials, 3D printing, and smart engineering—columns can work harder, use less energy, and last longer. By choosing the right packing, managing flow, and staying on top of maintenance, businesses can save money, boost output, and meet green goals. As technology evolves, tower packings will keep improving, helping industries stay ahead in a fast-moving world.

Understanding Gas Scrubber Vessels Basics

The gas scrubber vessels may be analogized as the lungs of an industrial plant. As the flue gas given out by processes like coal-burning or oil-refining contains obnoxious particles and impurities of gaseous nature, in the absence of scrubbers, those pollutants would freely disperse and pollute the environment by way of smog or acid rain. The scrubbers go on to cleanse that dirty gas by mixing it with a cleaning agent, either liquid or dry, which holds onto those pollutants. In consequence, clean emissions fit for meeting stringent environmental laws are generated. Often, a knock out drum is incorporated upstream to take out larger liquid droplets in the incoming gas stream for the purpose of making it easier for the scrubber.

The Need for Gas Scrubbers in Modern Industry

Pollution is not merely a trendy term in environmentalism; it damages health and ecosystems. The industries vent gases like sulfur dioxide, which aggravates respiratory problems, or nitrogen oxides that contribute to the formation of ozone at ground level. Washers stand right on them, pulling the pollutants from the exhaust streams. In many installations, a knockout drums is installed upstream of the gas scrubber for the separation of entrained liquid to avoid overloading the gas scrubber and to make sure the pollutant capture is being effected properly.

Breaking Down How Gas Scrubbers Function

The process starts when polluted gas enters the scrubber through an inlet. Inside, it encounters a scrubbing medium. In wet systems, sprays of water or chemicals rain down, capturing particles as they collide. The dirty liquid collects at the bottom, while clean gas exits the top.

Dry scrubbers work differently, injecting powders like lime that react with gases to form solids. These solids get filtered out, leaving purified air. Efficiency depends on factors like gas flow rate and contact time. Advanced designs use baffles or packing to boost interaction.

Exploring Different Types of Gas Scrubbers

Variety is key because no two industries face the same pollutants. Let’s look at the main categories.

Wet Scrubbers in Detail

Wet scrubbers dominate where soluble gases need removal. The gas bubbles through or gets sprayed with liquid, often water mixed with alkalis for acids. Droplets trap dust and absorb gases like HCl or SO2. Incorporating a knock out drum in the system helps manage excess liquid entrainment, making the process more reliable for continuous operation.

Open-loop versions use fresh water, discharging used liquid after treatment. Closed-loop recycle the liquid, adding chemicals as needed. Hybrid combine both for flexibility.

In marine settings, like on ships, wet scrubbers clean exhaust from heavy fuel oil, complying with IMO sulfur caps. Seawater often serves as the medium, neutralizing acids naturally.

Dry Scrubbers Explained

Dry scrubbers shine in water-scarce areas. They use sorbents like activated carbon or lime injected into the gas stream. Reactions form dry byproducts collected via filters.

These are great for high-temperature gases, avoiding evaporation issues. However, they might not handle sticky particles as well as wet ones.

Venturi Scrubbers for Fine Particles

Venturi scrubbers accelerate gas through a narrow throat, creating high-velocity mixing with liquid. This turbulence captures tiny particles down to microns.

They’re energy-intensive but excellent for submicron dust in metal smelting or pharma.

Packed Bed Scrubbers for Gas Absorption

Packed beds fill a tower with random or structured packing, increasing surface area. Gas flows up, liquid down, maximizing contact for absorption.

Ideal for VOCs or ammonia in chemical processing.

Spray Tower Scrubbers

Spray towers are simple: gas rises through falling sprays. Good for coarse particles but less for fine ones.

Often used in flue gas desulfurization with limestone slurry.

Electrostatic Precipitators as Companions

Though not pure scrubbers, ESPs charge particles electrically, collecting them on plates. Often paired with scrubbers for comprehensive cleaning.

In coal plants, ESPs handle dust before scrubbers tackle gases.

Essential Parts That Make Scrubbers Tick

A scrubber’s heart is its chamber, but supporting components are crucial.

Inlets direct gas flow evenly. Scrubbing zones vary by type. Outlets include demisters to catch moisture.

Wide-Ranging Industrial Uses

Scrubbers adapt to many sectors, each with unique demands.

Oil and Gas Sector

Refineries deal with H2S and VOCs. Scrubbers remove them, preventing flares from polluting.

In natural gas processing, amine scrubbers strip CO2 and H2S.

Power Generation Plants

Coal plants use FGD scrubbers with limestone to cut SO2 by 95%.

Gas-fired ones target NOx.

Byproducts like gypsum get reused in wallboard.

Chemical Production Facilities

Acids, solvents, and odors need control. Packed beds absorb fumes efficiently.

Fertilizer plants scrub ammonia with acid solutions.

Mining and Cement Operations

Dust-heavy environments favor dry scrubbers for SO2 and particulates.

Mines use them for ventilation air cleaning.

Pharmaceutical and Biotech

Fine powders and solvents require Venturi or HEPA-integrated scrubbers.

Cleanrooms demand ultra-low emissions.

Food Processing and Waste Management

Odor control in rendering plants uses chemical scrubbers.

Incinerators scrub dioxins and HCl.

Maritime and Shipping

Ships install EGCS to clean bunker fuel exhaust.

Open-loop use seawater, closed-loop treat and recycle.

Metal Finishing and Semiconductor

Plating shops scrub chrome mists; chip fabs handle HF.

Advantages That Make Scrubbers Worth It

• High removal rates, up to 99% for some pollutants.
• Flexibility in handling mixed streams.
• Energy recovery in some designs, like heat from hot gases.
• Byproduct value, reducing net costs.
• Compliance assurance, avoiding penalties.

Facing the Hurdles Head-On

• Corrosion from acids eats at materials; regular checks needed.
• Water use in wet systems strains resources; recycling helps.
• Waste disposal: sludge or washwater requires treatment.
• Installation space and retrofits challenge older plants.
• High initial costs, though payback comes via savings.

What Sets Varun Engineering Apart

• Tailored engineering for exact needs.
• Use of cutting-edge simulations for design.
• Comprehensive service from install to upkeep.
• Commitment to sustainability, like low-energy models.
• Proven track record in diverse industries.

Selecting the Perfect Scrubber

• Assess pollutants first.
• Factor in space, water availability.
• Budget for ops and maintenance.
• Consult experts like Varun Engineering for simulations.
• Test pilots if possible.

Looking Ahead: Innovations in Scrubbing

• Smarter sensors for real-time adjustments.
• Membrane tech for better separation.
• Carbon capture integrations for climate goals.
• Varun Engineering pioneers hybrid systems combining wet/dry for versatility.
• Reuse of captured CO2 in fuels or chemicals points to a circular future.

Wrapping It Up

Gas scrubber vessels keep industries humming while safeguarding the air. From wet to dry, Venturi to packed, they adapt to needs across sectors. Benefits outweigh challenges when designed right. Varun Engineering stands ready with expertise to implement top-notch solutions. Questions on fitting one to operations? Contact Varun Engineering for guidance.

Understanding Mist Eliminators

A mist eliminator is a device that will weed out those tiniest of liquid droplets essentially called mist from gas streams. Now imagine a factory where, from boling or spraying to various chemical reactions, fine droplets get created maybe with air or gas. If those droplets escape out, they contaminate the machines, pollute the ambient, or spoil products. The mist eliminators work something like a strainer to catch the liquid with the clean gas passing through.

Varun Engineering manufactures such devices for practically all industries—chemical plants, oil and gas facilities, power plants, even food factories. They are built to ensure the smooth running of operations, safeguard equipment, and comply with environmental laws.

Why Mist Eliminators Matter

Mist forms in industrial processes for a few reasons:

• Cooling Down: Hot gas cools, and vapor turns into tiny droplets, like morning fog.
• Mechanical Processes: Spraying liquids, mixing, or boiling can break liquids into droplets that get carried by gas.
• Chemical Reactions: Some reactions release liquids that form mist in the gas.

If this mist isn’t dealt with, it causes trouble:

• Damaged Equipment: Droplets can rust pipes, wear out turbines, or clog systems, leading to expensive fixes.
• Pollution: Mist carrying chemicals can escape into the air, breaking environmental laws.
• Product Problems: In places like drug or food factories, mist can contaminate batches, wasting time and money.
• Safety Hazards: Toxic or flammable mist can put workers or nearby areas at risk.

Mist eliminators stop these issues by grabbing droplets before they cause harm. Varun Engineering builds solutions tailored to each industry’s needs, keeping things running smoothly.

How Mist Eliminators Do Their Job

Mist eliminators work by separating liquid droplets from gas in a straightforward way. Here’s how it happens:

1. Gas Flows In: Gas mixed with tiny droplets enters the mist eliminator, usually inside a vessel, tower, or pipe.
2. Droplets Hit a Barrier: The eliminator has a surface—think mesh, plates, or fibers—that makes the gas twist and turn. Droplets, being heavier, can’t keep up and smack into the surface.
3. Droplets Combine: Once stuck to the surface, droplets merge into bigger drops, a process called coalescence. Bigger drops are easier to separate.
4. Liquid Drains Off: The heavier drops slide down due to gravity and collect in a container or flow back into the process.
5. Clean Gas Moves On: The gas, now free of most droplets, continues through the system or gets released safely.

Varun Engineering designs these devices to catch as many droplets as possible without slowing down the gas flow too much, saving energy and keeping things efficient.

Different Kinds of Mist Eliminators

Not all mist eliminators are the same. Varun Engineering offers several types, each suited to specific jobs. Here’s a rundown of the main ones:

1. Wire Mesh Mist Eliminators

These are the most common type, made of knitted or woven metal wires, like stainless steel, forming a thick pad. Gas passes through, but droplets get caught.

• How They Work: The mesh acts like a net, snagging droplets as they try to follow the gas. The droplets stick, combine, and drip down.
• Benefits: They catch up to 99% of droplets as small as 2 microns, cost less, and are easy to set up.
• Uses: Found in chemical plants, oil refineries, and gas scrubbers.
• Example: In a fertilizer plant, wire mesh eliminators grab acid mist to protect pipes from rusting.

2. Vane-Type Mist Eliminators

Mist Eliminator Vane Pack systems use angled plates or blades to redirect gas flow. Droplets crash into the blades and get separated, ensuring efficient removal of liquid particles from the gas stream.

• How They Work: Gas weaves through the vanes, and droplets, too heavy to turn, hit the plates and slide down.
• Benefits: Great for fast-moving gas or when solids are mixed in. They don’t clog easily and keep gas flowing smoothly.
• Uses: Common in cooling towers and power plant exhaust systems.
• Example: In a coal power plant, vane eliminators remove water droplets from scrubber exhaust to protect turbines.

3. Fiber Bed Mist Eliminators

These use fine fibers, like glass or plastic, packed between screens. They’re built for tiny droplets.

• How They Work: Gas flows through the fibers, where droplets collect and form liquid films that drain away.
• Benefits: Perfect for droplets smaller than 1 micron, offering top-notch efficiency.
• Uses: Used in chemical plants and air pollution control.
• Example: In a drug factory, fiber bed eliminators keep air clean for sterile production.

4. Cyclone Mist Eliminators

Cyclone eliminators spin gas in a cylindrical chamber, using centrifugal force to fling droplets to the walls.

• How They Work: The spinning motion pushes droplets outward, where they hit the walls and drain.
• Benefits: Handle larger droplets and heavy liquid loads well.
• Uses: Found in oil and gas separators and wastewater systems.
• Example: In an oil refinery, cyclone eliminators pull oil mist from gas streams for cleaner output.

Varun Engineering picks the right type based on the job, ensuring the best results for each client.

How Droplets Get Caught

Mist eliminators rely on three key ways to trap droplets:

1. Inertial Impaction: Bigger droplets (20-30 microns) move straight and crash into the eliminator’s surface because they can’t follow the gas’s curves.
2. Direct Interception: Medium droplets (1-3 microns) stick to surfaces as they brush past, even if they follow the gas.
3. Brownian Diffusion: Tiny droplets (under 1 micron) wiggle randomly due to gas molecule collisions, making them more likely to hit the eliminator.

These methods team up to remove 97-99% of droplets, depending on the eliminator’s setup.

Where Mist Eliminators Shine

Mist eliminators are used in all sorts of industries to tackle specific problems. Varun Engineering builds devices to match each sector’s needs. Here’s a look at where they’re used:

1. Chemical Plants

Chemical processes often create corrosive mists, like sulfuric or hydrochloric acid mist. These can eat away at equipment or pollute the air. Mist eliminators catch these droplets to keep things safe.

• Example: In a fertilizer plant, wire mesh eliminators stop acid mist, protecting pipes and meeting emission rules.
• Varun Engineering’s Role: Custom mesh pads handle tough chemicals and high heat.

2. Oil and Gas

Refineries and gas plants deal with oil mist, water droplets, and hydrocarbon aerosols. Mist eliminators keep these from damaging equipment or lowering product quality.

• Example: In a gas separator, a cyclone eliminator removes oil mist, ensuring purer gas.
• Varun Engineering’s Role: Vane and cyclone designs work in high-pressure systems and resist sticky hydrocarbons.

3. Power Plants

Power plants, especially those with flue gas desulfurization (FGD), use mist eliminators to clean exhaust gases of water and acid droplets, protecting turbines and cutting emissions.

• Example: In a coal plant, vane eliminators clear water droplets from scrubber exhaust, saving turbine blades.
• Varun Engineering’s Role: Durable vanes handle high gas flows with little upkeep.

4. Wastewater Treatment

Single-effect wastewater evaporators produce vapor with droplets. Mist eliminators ensure clean vapor for condensing or release.

• Example: In an evaporator, a wire mesh eliminator captures droplets for high-quality distilled water.
• Varun Engineering’s Role: Custom designs handle corrosive wastewater and solids.

5. Food and Drug Industries

These sectors need clean, sterile air. Mist eliminators remove moisture or chemical droplets to avoid contamination.

• Example: In a drug plant, fiber bed eliminators keep air sterile for production.
• Varun Engineering’s Role: High-efficiency fiber beds meet strict hygiene standards.

6. Cooling Towers

Cooling towers release water droplets that can carry contaminants. Mist eliminators cut water loss and protect the environment.

• Example: Louver-type eliminators in cooling towers trap droplets, saving water.
• Varun Engineering’s Role: Lightweight, corrosion-resistant vanes are easy to install.

Why Use Mist Eliminators?

Mist eliminators bring a lot to the table:

• Equipment Protection: They stop corrosive droplets, making pipes and turbines last longer.
• Cleaner Air: Capturing pollutants helps meet environmental rules.
• Better Products: Clean gas streams prevent contamination in sensitive industries.
• Lower Costs: Less damage and clogging mean fewer repairs and less downtime.
• Safer Workplaces: Removing toxic or flammable mist reduces risks.
• Resource Savings: Captured liquids can often be reused, cutting waste.

Varun Engineering’s designs maximize these benefits, offering solutions that fit each industry.

Choosing the Right Mist Eliminator

Picking the best mist eliminator depends on a few things. Varun Engineering works with clients to get it right. Key factors include:

• Gas Flow: Fast-moving gas needs vane eliminators; slower flows work with mesh pads.
• Droplet Size: Fiber beds catch tiny droplets, while vanes handle bigger ones.
• Liquid Load: High liquid amounts need good drainage, like cyclone designs.
• Conditions: Temperature, pressure, and chemical harshness guide material choices (e.g., stainless steel or plastic).
• Upkeep: Mesh pads are easy to clean; vanes resist clogging.

Varun Engineering analyzes these to deliver the best fit.

Keeping Mist Eliminators in Top Shape

Regular care keeps mist eliminators working well. Here’s how:

• Cleaning: Rinse mesh pads with water to clear buildup. Dry them to avoid rust.
• Checks: Look for clogs, corrosion, or damage, especially in tough conditions.
• Replacement: Mesh pads may need swapping every few years.
• Monitoring: Watch pressure drop to catch blockages early.

Varun Engineering offers tips and support for long-lasting performance.

Varun Engineering’s Edge

Varun Engineering stands out for good reasons:

• Custom Solutions: Each eliminator is built for the client’s specific needs.
• Tough Materials: Options include stainless steel, polypropylene, and corrosion-resistant alloys.
• Expert Help: From design to setup, the team ensures everything works perfectly.
• Versatile Uses: Solutions fit industries from oil to pharmaceuticals.
• Eco-Friendly Focus: Designs save energy and meet environmental standards.

Clients rely on Varun Engineering for dependable, cost-effective mist eliminators.

Challenges and Fixes

Mist eliminators face some hurdles, but there are solutions:

• Re-entrainment: High gas speeds can pull droplets back into the flow. Fix: Design with proper speed limits using the Souders-Brown equation.
• Clogging: Solids can block mesh pads. Fix: Use vanes or clean regularly.
• Corrosion: Harsh chemicals can damage materials. Fix: Choose tough materials like PTFE or stainless steel.
• Pressure Drop: Bad designs slow gas flow. Fix: Optimize for low pressure drop, as Varun Engineering does.

These fixes ensure reliable performance in tough settings.

What’s Next for Mist Eliminators?

As industries push for cleaner, more efficient operations, mist eliminators will evolve:

• New Materials: Stronger alloys and plastics will handle harsher conditions.
• Smart Tech: Sensors could monitor performance and flag maintenance needs.
• Energy Savings: Designs will focus on less resistance to gas flow.
• Sustainability: More systems will reuse captured liquids, cutting waste.

Varun Engineering is already working on these advancements.

Why Go with Varun Engineering?

Varun Engineering brings years of know-how to the table. Their mist eliminators are:

• Made to Fit: Designed for each client’s unique process.
• Built to Last: Use tough materials for harsh conditions.
• Budget-Friendly: Low upkeep and long life save money.
• Backed by Experts: A team helps with design, setup, and care.

From chemical plants to power stations, Varun Engineering delivers results.

Wrapping Up

The mist eliminators could definitely be classified as unsung heroes of the industry, with their role in protecting equipment from corrosion, maintaining clean air, and ensuring product purity by arresting fine-size liquid droplets in gaseous streams. Wire mesh mist eliminators, vane mist eliminators, fiber bed mist eliminators, and cyclones find their place in chemical plants, refineries, and power stations alike. Custom engineered solutions make Varun Engineering the premier option for mist-related problems.

Knowing how mist eliminators function and their perks allows industries to make wise decisions concerning economy, safety, and environment. Higgins Engineering is the name to stand for when looking to buy a mist eliminator that fits the bill.

Understanding Vane Separators

Vane separators (or “chevron separators/demisters”) are designed to remove liquid droplets or solid materials from gas streams. Let’s put it into perspective. Suppose we have a gas flow that carries tiny droplets of water, oil, or dust within it. This stuff is bad for equipment, poor quality, or harmful to the environment. Vane separators are like a hedge that traps those particles, allowing clean gas to move through.

The idea is simple, yet brilliant. All you have to do is have the gas flow through a series of angled plates or vanes. This forces the gas to travel along a convoluted path. Liquid droplets and particles will be heavier than gas; therefore they cannot keep up with sharp angles. As such they hit the vanes and stick to them, before sliding down into a collection area. The gas is cleaner and there is little energy lost during the process.

Varun Engineering crafts vane separators using tough materials like stainless steel or carbon steel. These are built to handle the harsh conditions of chemical plants and refineries, whether it’s separating water from steam or oil from natural gas.

Why Efficiency Is Critical

Chemical and petrochemical plants are complex. Refining oil, producing ammonia, or making plastics requires massive energy, raw materials, and time. Any issue—like equipment breakdowns or contaminated products—can lead to huge losses. Efficiency isn’t just a buzzword; it’s the backbone of profitability and compliance.

Here’s what efficiency means:

• Cost savings: Less energy and fewer resources wasted.
• Better products: Cleaner outputs meet market standards.
• Environmental compliance: Fewer emissions keep regulators at bay.
• Uptime: Reliable equipment reduces costly shutdowns.

Vane separators contribute by ensuring clean gas streams, protecting machinery, and keeping processes running smoothly.

How Vane Separators Function

To see why vane separators matter, it helps to know how they operate. The process is clear and effective:

1. Gas Enters: A gas stream with liquid droplets or solids flows into the separator.
2. Twisting Path: The gas navigates through vanes, changing direction multiple times.
3. Particle Capture: Droplets and particles, too heavy to turn, collide with the vanes and stick.
4. Liquid Drainage: Captured droplets form a film, draining into a collection area.
5. Clean Gas Exits: The purified gas moves on to the next process stage.

This happens with minimal pressure drop, so the gas doesn’t lose much energy. Varun Engineering’s separators remove nearly all droplets larger than 8 microns, ensuring high efficiency without slowing down operations.

Benefits of Vane Separators

Vane separators bring a host of advantages that directly improve plant performance. Here’s how they shine:

1. Protecting Equipment

Compressors, turbines, and heat exchangers are the heart of chemical and petrochemical plants. They’re expensive and sensitive to damage. Liquid droplets or solids in gas streams can cause corrosion, erosion, or buildup, leading to breakdowns. Vane separators remove these contaminants before they reach critical equipment, extending its life and cutting repair costs.

For instance, in a refinery, a vane separator can strip oil droplets from a gas stream before it hits a compressor. This prevents wear and tear, keeping the compressor running longer and saving money.

2. Enhancing Product Quality

Purity matters in these industries. Contaminated gas streams can ruin products like fertilizers, methanol, or gasoline. Vane separators ensure gases are free of liquids and solids, resulting in higher-quality outputs that meet strict standards.

In ammonia production, for example, vane separators remove water and impurities from gas streams. This ensures the ammonia is pure, ready for sale, and compliant with regulations. Varun Engineering designs separators specifically for such processes, delivering consistent results.

3. Saving Energy

Energy costs are a major concern in chemical and petrochemical plants. Vane separators are built to minimize pressure drop, meaning the gas flows through without losing much energy. This reduces the power needed to keep processes running, unlike some other separation methods that can slow things down.

Varun Engineering’s separators are optimized for low energy loss, helping plants cut utility bills while maintaining high performance.

4. Supporting Environmental Goals

Regulations on emissions are tighter than ever. Plants face hefty fines for releasing pollutants. Vane separators remove oil, water, and solids from gas streams before they exit stacks, reducing environmental impact and ensuring compliance.

In natural gas processing, for example, vane separators remove condensate and oil, preventing harmful emissions. Varun Engineering’s designs handle high-pressure and high-volume streams, making them perfect for these tasks.

5. Low Maintenance, High Durability

Equipment that needs constant upkeep is a headache. Vane separators are low-maintenance, thanks to their self-cleaning design. The liquid film that forms washes away captured particles, reducing the need for manual cleaning.

Varun Engineering uses materials like stainless steel or aluminum, built to withstand corrosive chemicals and high temperatures. This durability means fewer replacements and lower costs over time.

Where Vane Separators Shine

Vane separators are versatile, fitting into many processes in chemical and petrochemical plants. Here are some key uses:

Natural Gas Processing

Natural gas often carries water, oil, or other liquids that must be removed before transport or refining. Vane separators efficiently clean the gas, ensuring it’s pipeline-ready. Varun Engineering’s separators handle high-pressure flows, making them a top choice for gas plants.

Oil Refineries

Refineries use vane separators during distillation or cracking to remove liquid droplets from gas streams. This protects equipment and ensures products like diesel or kerosene meet quality standards. Varun Engineering customizes separators for the tough conditions of refineries.

Methanol Production

Producing methanol requires removing water and impurities from gas streams to achieve high purity. Vane separators make this possible, improving product quality. Varun Engineering’s tailored designs ensure methanol plants run efficiently.

Steam Systems

Steam powers many petrochemical processes, but wet steam can harm turbines and reduce efficiency. Vane separators, often called demisters here, remove water droplets, protecting equipment and boosting performance. Varun Engineering’s demisters are built for high-temperature steam applications.

Pollution Control

Vane separators help plants meet emission standards by removing pollutants from gas streams before release. This is critical for compliance in chemical plants and refineries. Varun Engineering’s separators are designed to tackle specific contaminants, ensuring cleaner operations.

Why Varun Engineering Stands Out

Not all vane separators are the same. Varun Engineering excels by focusing on quality and customization. Here’s why their separators are trusted:

• Tailored Solutions: Each plant has unique needs, and Varun Engineering designs separators to match, from material to capacity.
• High Performance: Their separators remove 100% of droplets 8 microns and larger, ensuring top efficiency.
• Durable Build: Materials like stainless steel or carbon steel withstand harsh environments.
• Minimal Upkeep: Self-cleaning designs reduce downtime and maintenance costs.
• Global Expertise: With installations in over 35 countries, Varun Engineering has a strong reputation.

Vane Separators vs. Other Technologies

Vane separators aren’t the only option for gas-liquid separation. Here’s how they compare:

Vane Separators vs. Centrifugal Separators

Centrifugal separators spin gas to separate liquids and solids. They’re good for heavy loads but less effective for fine droplets. Vane separators handle smaller droplets (8 microns and up) with less energy loss. Varun Engineering’s compact designs are also easier to maintain.

Vane Separators vs. Mesh Demisters

Mesh demisters use wire mesh to catch droplets but can clog with sticky or solid particles. Vane separators are self-cleaning and more reliable in tough conditions. Varun Engineering’s designs offer higher efficiency than many mesh demisters.

Vane Separators vs. Cyclonic Separators

Cyclonic separators use rotation to separate particles but need more space and energy. Vane separators are compact and energy-efficient, ideal for tight spaces. Varun Engineering’s separators balance size and performance perfectly.

Overcoming Challenges

Vane separators face some challenges, but Varun Engineering has solutions:

High Gas Velocities

Fast-moving gas can re-entrain droplets, lowering efficiency. Varun Engineering uses grooved vanes to trap droplets effectively, even at high speeds.

Sticky or Solid Particles

Sticky or solid-laden gases can clog separators. Varun Engineering’s self-cleaning designs and durable materials prevent buildup.

Space Constraints

Some plants lack space for large equipment. Varun Engineering’s compact separators fit tight spaces while delivering high performance.

The Future of Vane Separators

The industry is evolving, and vane separators are keeping pace. New designs, like grooved vanes or hybrid systems combining vane and cyclonic tech, promise even better efficiency. Varun Engineering invests in innovation to handle higher capacities and tougher conditions.

As environmental rules tighten, vane separators will be key to reducing emissions and waste. Plants adopting high-quality separators now will stay ahead of regulations and competition.

Choosing the Right Vane Separator

Picking a vane separator can seem daunting. Here are tips to simplify it:

• Understand the Process: Know the gas flow, pressure, and contaminants to choose the right size and material.
• Focus on Efficiency: Opt for separators that remove 100% of droplets 8 microns and larger, like Varun Engineering’s.
• Minimize Maintenance: Self-cleaning designs save time and money.
• Check Compatibility: Ensure materials handle the plant’s chemicals and temperatures.
• Partner with Experts: Work with Varun Engineering for tailored solutions and support.

Varun Engineering’s Commitment

Varun Engineering goes beyond just selling separators. They provide complete engineering support from design to installation and after-sales services. They maintain the quality, logistically reliable, and supply for plants of all sizes due to their worldwide presence.

Conclusion

Vane separators are critical for chemical and petrochemical plants. Their importance, their working principle, and their all-encompassing benefits in protecting equipment, adding to product quality, saving energy, and complying with environmental rules must be sought behind Varun Engineering capable of rendering custom-built high-efficiency separators for all.

For plants aspiring to improve their performance, vane separators become the increment of value toward competition. Through the expert hands of Varun Engineering, it goes through challenges and smooth sites to operate at its fullest. Ready to improve performance? Then it has to be a vane separator.

Effective optimization extends the usability of packings, improves process outputs, and cuts back on maintenance needs. This piece outlines actionable strategies for enhancement. Coverage spans from material choice to routine checks, where every step influences the final results. Column internals, including supports and distributors, play a key role alongside packings.

Understanding Packing Materials

Different packing types exist, ranging from simple rings and saddles to advanced structured forms. Random packings, including examples like Intalox saddles or Berl rings, get loaded loosely into the column for a haphazard yet functional setup. Structured variants, often crafted from perforated plates or mesh, stack in orderly sections to guide flows more predictably. Carbon Rashing Rings serve as a durable choice for specific chemical resistances.

Application dictates the best fit. Distillation setups demand packings that endure heat and chemical attacks, while scrubbing towers prioritize low resistance to airflow. Metal Tower Packing excels in thermal stability, and Ceramic Tower Packing handles acidic conditions well.

Start optimization by grasping core elements. Assess operational details such as throughput volumes, thermal conditions, and substance interactions. Incompatibilities here trigger problems like blockages or breakdowns over time.

Digging further, examine material behaviors with process media. Stainless steel holds up in hot zones, polypropylene fights off acids effectively, and glass suits purity-sensitive tasks. Lab trials under mimicked scenarios spot risks ahead.

Variations in design also matter. Some packings feature enhanced geometries for better wetting, reducing dry spots that hinder performance. Column internals ensure proper flow distribution throughout.

Selecting the Right Packing Material

Picking suitable packings lays the groundwork for peak operation. Weigh these aspects carefully.

• Surface Area and Void Fraction: Greater area aids transfer processes, vital for thorough mixing. But overloads risk overflow issues. Empty spaces control flow resistance. Tailor this equilibrium to match the task at hand. Metal Tower Packing often provides high surface options.
• Material Composition: Choices cover alloys, synthetics, and fired clays. Alloys thrive under thermal stress, synthetics handle erosive fluids, and clays resist mechanical wear in tough spots. Balance factors like expense and endurance. Ceramic Tower Packing stands out for its inert properties.
• Size and Shape: Compact designs yield higher contact zones but elevate backpressure, straining equipment. Bulkier options ease flow but might skim on interaction. Scale models test configurations for ideal outcomes. Carbon Rashing Rings come in various sizes for flexibility.

Varun Engineering delivers specialized packing solutions for diverse industrial uses, matching precise demands.

Consult specifications and expert input. Modeling tools forecast behaviors, such as transfer rates and hydraulic loads, prior to deployment.

Consider scalability too. What works in small tests might shift in larger columns due to wall effects or distribution variances. Column internals like grids enhance stability.

Proper Installation Techniques

Quality materials need correct placement to shine. Flawed methods cause uneven flows or early wear.

• Prepare the Column: Scrub internals free of dirt or remnants. Confirm base supports sit flat and stable to avoid shifts.
• Loading the Packing: Introduce random types steadily to prevent gaps or piles. Tools like funnels ensure even spread. For structured kinds, position segments accurately to preserve channels. Metal Tower Packing requires careful handling during this step.
• Avoid Overpacking: Too tight a fill shrinks open areas, hiking resistance and curbing capacity. Stick to advised depths and packs.
• Sealing Edges: Wall bypasses squander efficiency. Add deflectors or rings to channel streams centrally. Ceramic Tower Packing benefits from precise edge sealing.

After setup, test with neutral fluids to spot flaws like drips or biases. Refine as required.

History shows lapses here hurt. A processing plant saw 15% efficiency loss from clumped packings, fixed via reload with improved practices.

Account for vibrations or expansions in dynamic environments to maintain integrity. Column internals prevent such issues effectively.

Maintenance and Cleaning Strategies

Ongoing care sustains high standards. Deposits build up, clogging routes and dropping yields.

• Scheduled Inspections: Probe regularly for damage signs, from fractures to accumulations. Non-invasive scopes view insides without halts. Check Carbon Rashing Rings for wear.
• Cleaning Methods: Tackle organics with washes or vapor blasts. Minerals dissolve in targeted chemicals. Always flush clean to dodge leftovers.
• Regeneration: Adsorption packings revive via heat or solutions, reclaiming function sans swaps. This slashes outlays. Metal Tower Packing often regenerates well.

Log all actions meticulously, tracking timelines, techniques, and effects. Patterns guide future plans.

Anti-stick layers on surfaces combat chronic buildups, spacing out interventions.

Evidence from operations confirms benefits. Bi-annual cleanings in a drug manufacturing line doubled packing spans, underscoring routine value.

Adapt methods to specific foulants, like biological versus particulate, for best results. Ceramic Tower Packing resists certain foulants naturally.

Monitoring and Performance Evaluation

Steady surveillance catches dips early. Apply right gauges and indicators.

• Pressure Drop Measurement: Track for jumps signaling clogs or skews. Logs reveal trends over periods.
• Efficiency Metrics: Measure plate equivalents in separations. Tighter values mark strong packings. Column internals influence these metrics.
• Flow Distribution Checks: Dyes or scans uncover bypasses. Balanced spreads use beds fully.

Digital trackers automate data, flagging outliers promptly.

Pull samples along heights to gauge progress, tweaking as data suggests.

A treatment works averted outage through alerts on rising pressures, preserving runs and funds.

Integrate sensors for real-time insights, enabling proactive adjustments. Carbon Rashing Rings perform well under monitoring.

Common Mistakes and How to Avoid Them

Errors often stem from oversights, but knowledge prevents them.

• Ignoring Liquid Distribution: Weak spreaders lead to dry zones. Choose robust outlets like drippers or plates. Metal Tower Packing needs good distribution.
• Overlooking Thermal Expansion: Temperature swings expand parts, risking crushes. Build in buffers.
• Skipping Pilot Tests: Full jumps invite troubles. Trials confirm viability safely. Test Ceramic Tower Packing in pilots.
• Neglecting Safety: Manage handling per rules to sidestep harms in setups or fixes.

Training and checklists curb these slips, bolstering dependability.

Address human factors, like fatigue during long installs, with breaks and teams. Column internals require safe handling.

Advanced Optimization Tips

Push boundaries with cutting-edge tactics.

• Hybrid Packings: Merge loose and fixed styles for versatile strengths in complex jobs. Include Carbon Rashing Rings in hybrids.
• Computational Modeling: Flow simulations refine layouts for superior dynamics.
• Sustainable Practices: Go for renewable sources to meet green standards without loss.

Varun Engineering embeds these in products, aiding forward-thinking, clean operations.

Nanoscale enhancements cut friction, lifting transfers in novel ways.

Experiment with additives that boost wetting or repel contaminants for extra edges. Metal Tower Packing and Ceramic Tower Packing adapt well to these.

Conclusion

Smart optimization of column packings drives efficiencies, trims expenses, and lengthens service. Subtle shifts often spark major ups. Launch with reviews and roll out changes phased. Such tactics secure stellar column runs, fueling advances in fields. Column internals support this optimization fully.
